I’ve been working through a Linux networking course lately, and wanted to document some of the initial concepts that I found valuable. This post covers NAT, SSH, network interface inspection via the command line, and port forwarding, with a practical focus on getting SSH working inside a virtual machine (VM) environment.
Why This Matters for Data Engineers
Data engineering work is rarely confined to a single machine. Pipelines pull from remote databases, push to cloud storage, and run on servers accessible only through a terminal. Networking knowledge is therefore empowering, helping you debug issues with these varied services more independently.
NAT: Network Address Translation
NAT, or Network Address Translation, is the mechanism that allows devices on a private network to communicate with external networks — and with each other.
In VirtualBox (the open-source hypervisor software allowing me to run VMs), a VM is given a NAT adapter by default. This means the VM can reach the internet through the host machine, and the host can reach the VM through a NAT. What it does not allow by default is VM-to-VM communication. For that, you need to configure a NAT Network — a shared virtual network that multiple VMs can join. This can be done through the VirtualBox settings UI.
Network Interfaces: ip a and ifconfig
A network interface is a point of connection between a device and a network. This can be wifi, ethernet, loopback/localhost, etc.
Before setting up SSH or port forwarding, it helps to understand what your network interfaces look like. Two commands are commonly used for this:
ip a— the modern standard on Linuxifconfig— the older Unix/macOS equivalent, part of thenet-toolspackage
Both display information about your active network interfaces, including interface names (e.g., eth0, lo), IPv4 and IPv6 addresses, MAC addresses, and interface status. They usually show the private ip address of devices on network.
What addresses will you see?
The addresses you see fall into a few categories:
Private (RFC 1918) addresses — routable only within a local network:
10.0.0.0/8172.16.0.0/12192.168.0.0/16
Other common addresses:
127.0.0.1/::1— loopback, also known as localhost. Traffic sent here is intercepted by the OS and looped back to the local machine — it never touches a NIC or a router.169.254.x.x— link-local, OR APIPA. APIA is typically assigned when DHCP fails. DHCP is the Dynamic Host Configuration Protocol. It’s the system that automatically assigns IP addresses to devices when they join a network, so you don’t have to set one. APIPA stands for Automatic Private IP Addressing. It’s a fallback mechanism some OS’s use when a device can’t reach a DHCP server. In practice, seeing a 169.254.x.x address is usually a sign that something is wrong — your machine couldn’t find the DHCP server, meaning the router is down, the network cable is unplugged, or there’s some other connectivity issue. Conversely, link-local refers to addresses that are only valid on a single network segment — they can’t be routed beyond the directly connected link (cable, Wi-Fi, etc.). Link-local does not necessarily mean that there is a connectivity issue.fd00::/8orfe80::/10— IPv6 private and link-local ranges
On a typical home or office machine, ip a will show only private IPs. On a cloud VM (AWS, GCP, etc.), you will often see a private IP on the interface even if the machine has a public IP — the public IP is handled by the cloud provider’s NAT layer and won’t appear in ip a at all.
To find your public IP, query an external service:
curl ifconfig.me # returns whichever IP your request arrived from (may be either IPv4 or IPv6)
curl -4 ifconfig.me # show IPv4
curl -6 ifconfig.me # show IPv6
SSH: Secure Shell
SSH (Secure Shell) lets you control a remote system from the command line over an encrypted connection. If openssh-server is not already installed on your target machine, you can add it with:
sudo apt install openssh-server
sudo systemctl enable ssh
The default port for SSH (or other secured connections) on any machine is 22.
To connect:
ssh <username>@<ip-address>
By default, there is no direct route from the host machine to the VM’s private IP in VirtualBox. Port forwarding is the solution.
Port Forwarding
Port forwarding redirects traffic arriving at one address and port to a different address and port. When data arrives at a machine on a specific port, instead of that machine handling it directly, the traffic is forwarded elsewhere.
The Home Router Example
Your router has a single public IP. Behind it are many devices with private IPs, none of which are reachable directly from the internet. Port forwarding solves this:
- Someone connects to your public IP on port
8080 - Your router sees the incoming traffic and forwards it to a private IP on port
80 - The server on that machine responds, and the router sends the reply back
The outside world only ever sees the public IP — the internal machine stays hidden.
Other common uses include:
- Hosting a game server at home
- SSH-ing into a home machine from outside your network
- Exposing a local web server to the internet
Port Forwarding with VirtualBox

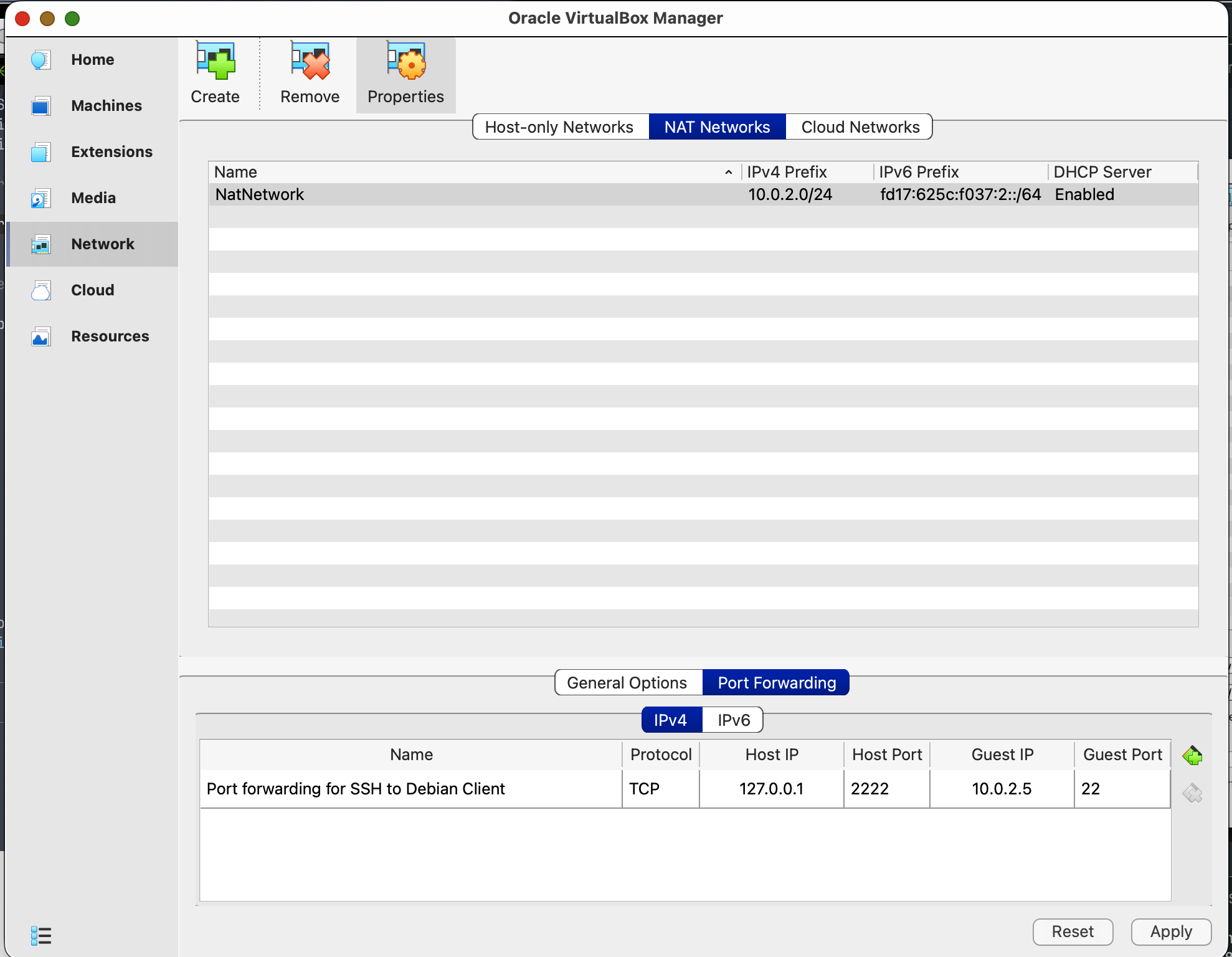

To SSH from your host machine into a VirtualBox VM, configure port forwarding in the VM’s network settings:
| Setting | Value |
|---|---|
| Host IP | 127.0.0.1 |
| Host Port | Any unused port, e.g. 22022 |
| Guest IP | The VM’s IP address (from ip a inside the VM) |
| Guest Port | 22 (default SSH port) |
Figure 1
Then SSH into the VM from your host:
ssh -p 22022 <username>@127.0.0.1
The -p flag specifies the host port you configured. The traffic hits your localhost on port 22022, gets forwarded by VirtualBox to the VM on port 22, and you have a shell.
Conclusion
Networking is one of those topics that feels irrelevant until you find yourself unable to explain why a pipeline can’t reach a database you know is running. The concepts here — NAT, private vs. public IPs, SSH, and port forwarding — come up often enough in data engineering work to make learnng these foundations worthwhile, even when they aren’t the focus of what you’re building. I hope this serves as a useful starting point. And as always, happy coding!
